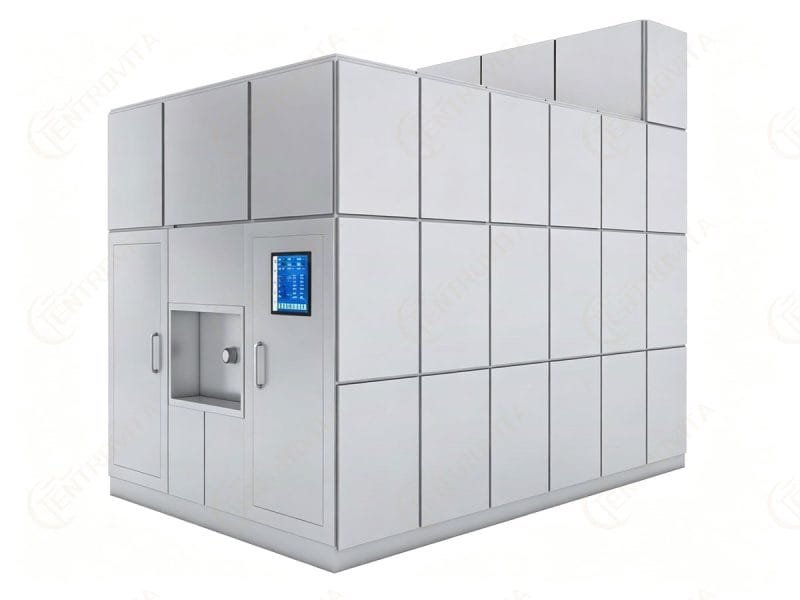

Intelligent retort machine for cremation

Intelligent Retort Machine for Cremation

Our intelligent retort machine for cremation combines humanised design, smart control and low-carbon combustion to overcome the typical drawbacks of conventional cremation equipment — low efficiency, high noise, high energy consumption, uneven furnace temperature and workshop pollution. The result is a cleaner, quieter and more reliable cremation solution for modern funeral facilities.

Key Features

• One-Key Start: The fully automatic burner and PLC-based control system let operators start and run the cremation cycle with a single touch.
• Real-Time Monitoring: a 15-inch touchscreen and Siemens PLC modules provide live status of temperature, pressure and combustion at all times.
• Remote Operation & AI Diagnostics: control and supervise the machine from anywhere; AI big-data analysis enables automatic early warning and fault diagnosis.
• Oil & Gas Dual Fuel: works with -20#/0# light diesel or natural gas / LPG for flexible, cost-effective operation.
• Humanised Ash Removal: a smooth ash-collection design simplifies post-cremation handling while keeping the work area clean.

Technical Highlights

Engineered for stable, economical cremation, this retort machine features a main combustion chamber of 1.08 m³ operating at 750-950 °C and a secondary chamber of 1.16 m³ at 850-1050 °C, ensuring complete combustion and minimal emissions.

• Average cremation time: 30-50 min per body (hot furnace average)
• Average fuel consumption: 6-12 kg per body
• Overall dimensions: 3600 × 2400 × 3300 mm (±5%)
• Installed power: 18.5 kW
• Machine weight: 13 t
• Ash cooling time: 5-8 min (adjustable)
• Design service life: 12,000 cremations

Why Choose Our Retort Machine

Backed by a patented exterior design and built with a stainless-steel frame and zircon-fibre blanket door, this machine combines durability, energy efficiency and operator safety. It is the ideal choice for funeral homes and crematoriums upgrading to smart, eco-friendly cremation technology.

Interested in this model? Contact us for pricing, delivery and installation support.
