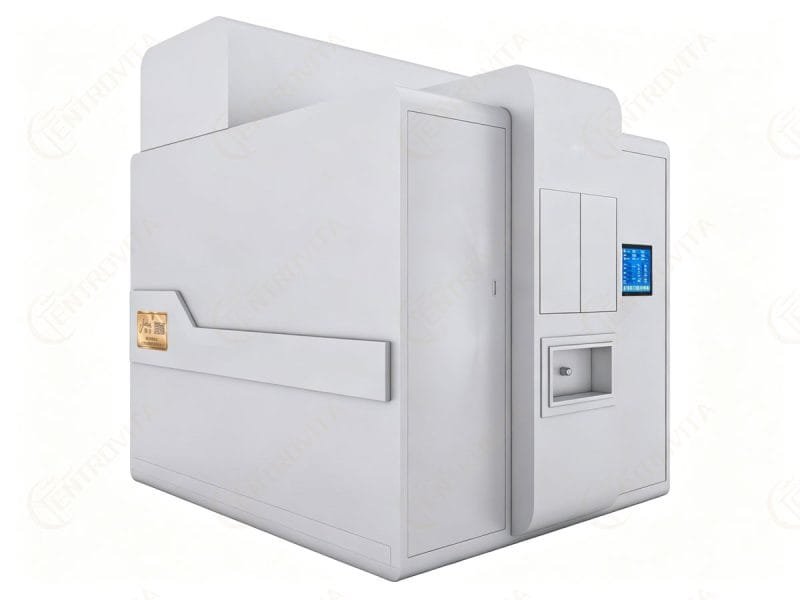

Eco-Friendly Human Cremation Furnace

Eco-Friendly Human Cremation Furnace

This eco-friendly human cremation furnace combines a stable fixed hearth with high-temperature secondary combustion, delivering thorough, clean and energy-efficient cremation. It is purpose-built for funeral homes that value reliability, low emissions and ease of operation.

Key Features

• High-Temperature Secondary Combustion: The 850-1050 °C secondary chamber burns residual flue gas completely, cutting smoke and odour.
• Stable Fixed Hearth: even heat distribution guarantees consistent cremation results every cycle.
• Intelligent Control: a 15-inch touchscreen with Siemens PLC modules supports one-key start, real-time monitoring and remote control.
• Energy-Saving Burner System: a fully automatic burner with an internal air heater improves thermal efficiency and lowers fuel use.
• Safer Operation: a stainless-steel frame, zircon-fibre blanket door, and manual emergency opening mechanism enhance safety.

Technical Highlights

As a high-performance human cremation furnace, it delivers an average cremation time of 30-50 minutes with fuel consumption of only 6-12 kg per body, backed by a design life of 12,000 cremations.

• Main chamber: 1.08 m³, 750-950 °C
• Secondary chamber: 1.16 m³, 850-1050 °C
• Overall dimensions: 3600 × 2400 × 3300 mm (±5%)
• Installed power: 18.5 kW
• Machine weight: 13 t
• Ash cooling time: 5-8 min (adjustable)

Why Choose Our Cremation Furnace

Engineered for stable combustion, low operating cost and long service life, this furnace is the dependable choice for crematoriums upgrading to eco-friendly cremation equipment.

Want to see it in action? Contact us for a live demo and installation details.
